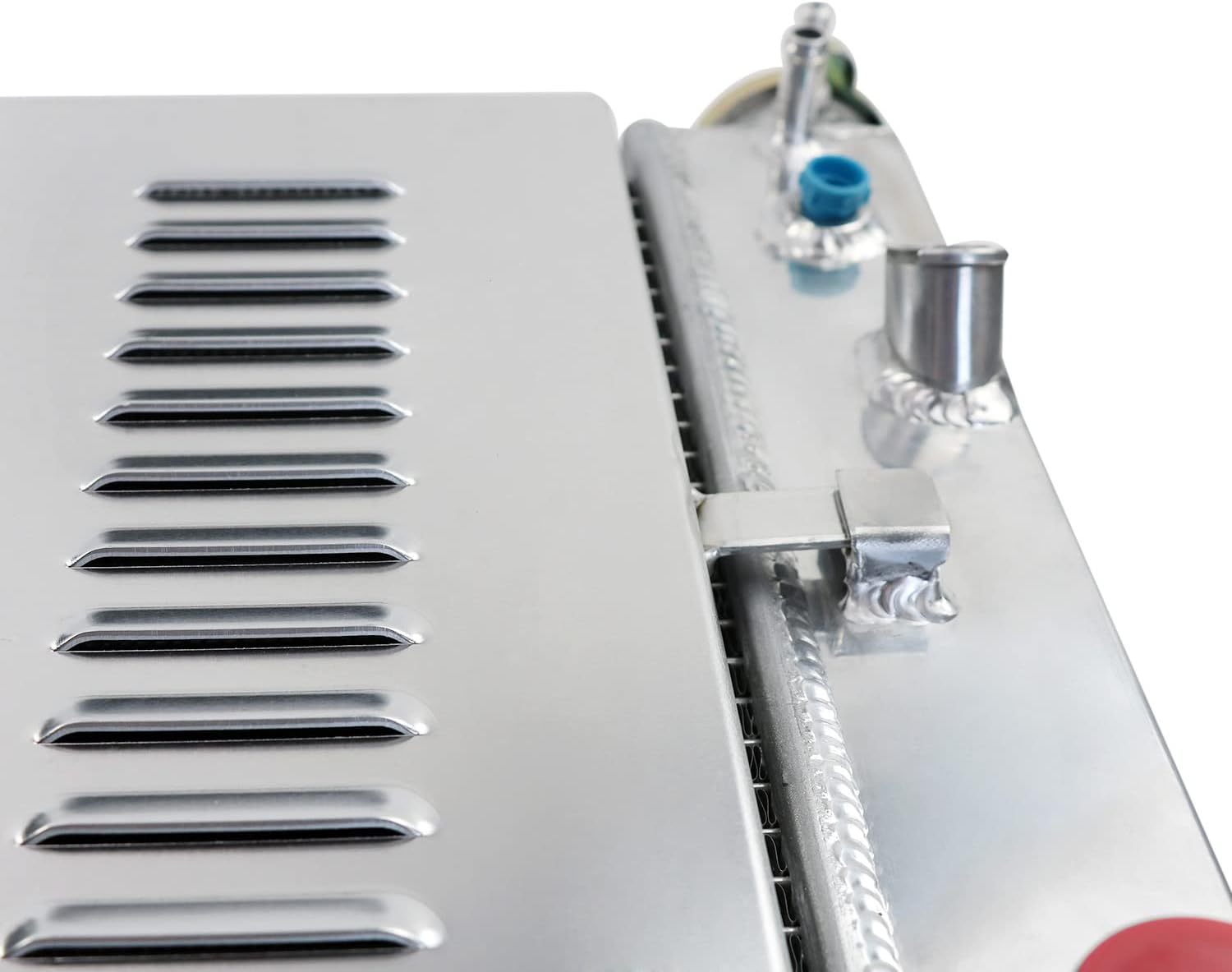

4 Row Aluminum Radiator + Shroud + Fan + Relay Fit 93-02 Chevy Camaro & Pontiac Firebird 3.4L 3.8L V6 GAS/5.7L V8 GAS
Product details
| Management number | 229627567 | Release Date | 2026/05/31 | List Price | $143.60 | Model Number | 229627567 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
FitmentFor 1993-2002 Chevy Camaro Z28 SS RS 3.4L 3.8L 5.7LFor 1993-2002 Pontiac Firebird Trans Am Formula 3.4L 3.8L 5.7LRadiator DetailsRow Count: 4 RowUpper Inlet: 1.5in located on driver sideLower Outlet: 1.25in located on passenger sideSurface Finish: Includes CNC machined filler neck and capOEM style brass petcock drainCNC machined filler neck and capFans SizeMaximum Fan CFM: 2000±200Fan Diameter (in): 16.050 inchesThickness (in): 2.790 inchesNumber of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie InstallationThermostat KitRED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch.BLUE wire goes to the Fans.Part NumberManufacturer Part Number:2365 CC2365, CU2365, DPI2365, RAD2365,MC2365
- Core Size: 2.44inT x 24.88inH x 17.24inW Overall Size: 30.3inH x 20.27inW
- Inlet/Outlet Diameter:1.5in/1.25in
- Package Include: Come with 1 x 4Row Complete Radiator. 1x Aluminum Shroud.1x16”Fans.1x Thermostat Relay Kit
- Drop in fit for easy installation; no modifications required.
- Crafted by our professional team using the highest-grade materials for exceptional longevity.
| ASIN | B09MK1KGNZ |
|---|---|
| Brand | RadBuild |
| Item Weight | 25.6 pounds |
| Manufacturer | RadBuild |
| Package Dimensions | 33.85 x 24.4 x 11.02 inches |
| Manufacturer Part Number | RadBuild-0096 |
